Inverter Power 12v 220v Pure Sine Wave 1000w

EDECOA Power Converter DC 12v AC 110v 230v 240v

(2 customer reviews)

$130.92

Fast Delivery: Select an option at checkout...
SKU: R72T3X9HX1YR Category:

TRUE PURE SINE INVERTER
DC to A/c Power Inverter 12V 230V can provide 1000W constant power/ 2000W max peak power.

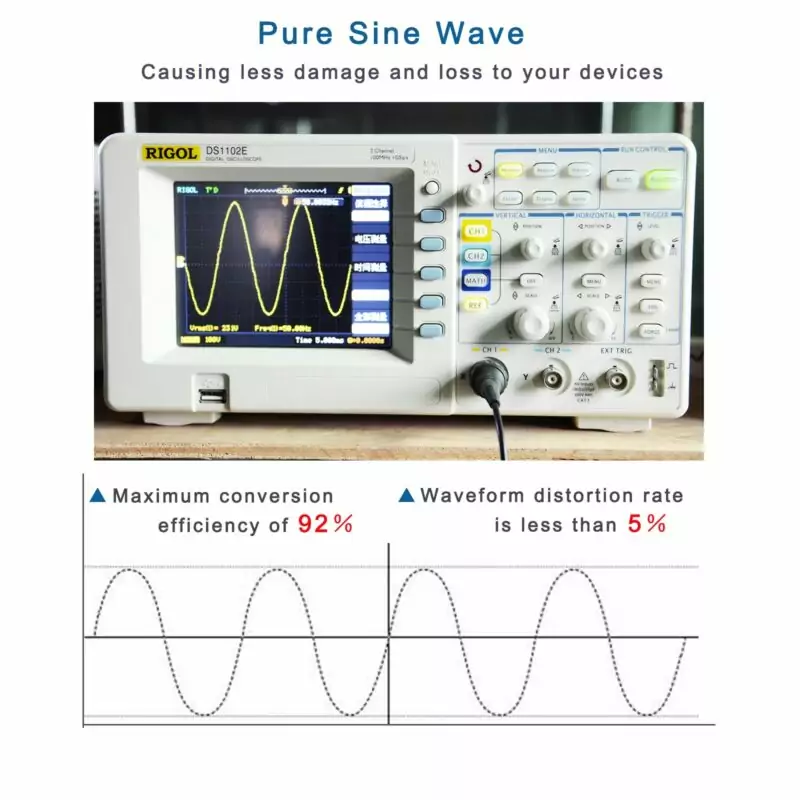

Driven by unipolar SPWM, the output sinusoidal waveform is purer. The main control chip adopts steady and high-speed MCU, smart control, real-time monitoring, a/c output frequency is more precise, and the work is more steady.

High Compatible Power Inverter

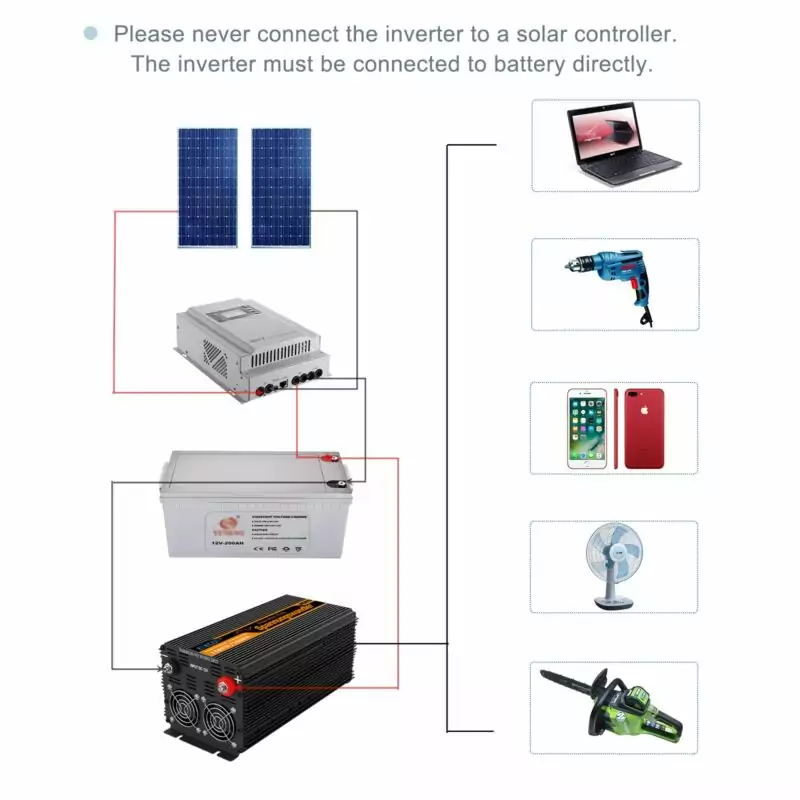

Pure Sine Wave Inverter 50Hz for inductive, resistive and capacitive load. 12V off-grid Inverter 230V for RV, planetary system, emergency situation power, garden work, caravan, vessel.

Dual EU Sockets (220V/ 230V/ 240V) for typical light bulbs, vacuum cleaner, LED light, chainsaw( less than 500w), drills, energy-saving lamps, laser printer, and more.

A More Lighter and quieter Inverter
Anodized Aluminum Case, Outstanding heat dissipation efficiency and great appearance.

Hard to scratch or leave marks.
Compared to other metal products, anodized aluminum is proficient at deterioration resistance.

Smart fans style
To lower unneeded waste of battery power and keep peaceful, the fan will not begin till the internal temperature level is 45 ℃+. Above 75 ℃, the power inverter will quit working to protect the off-grid inverter.

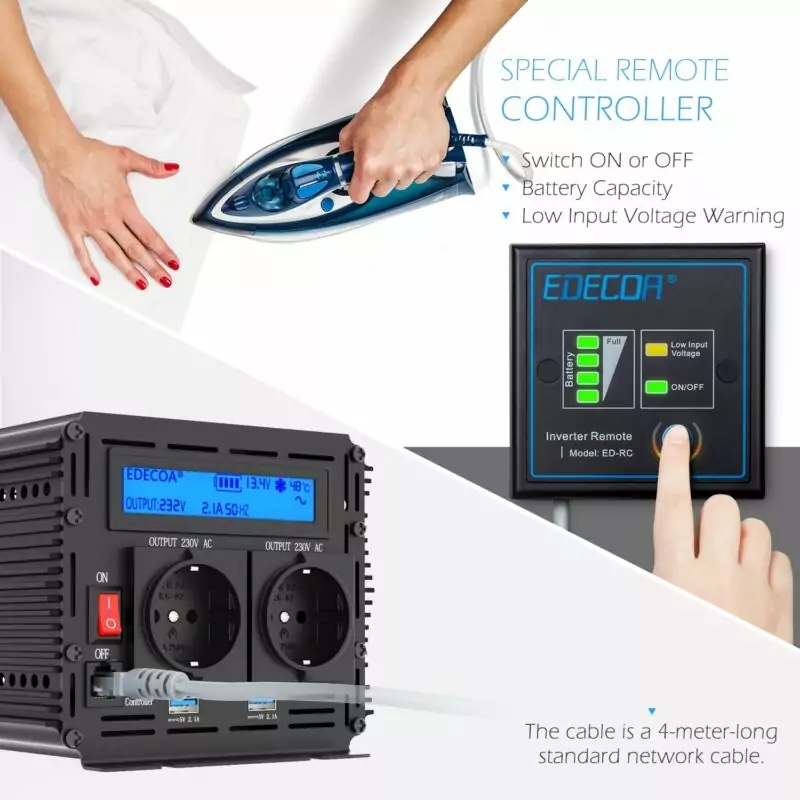

Smart LCD Display & Remote Controller

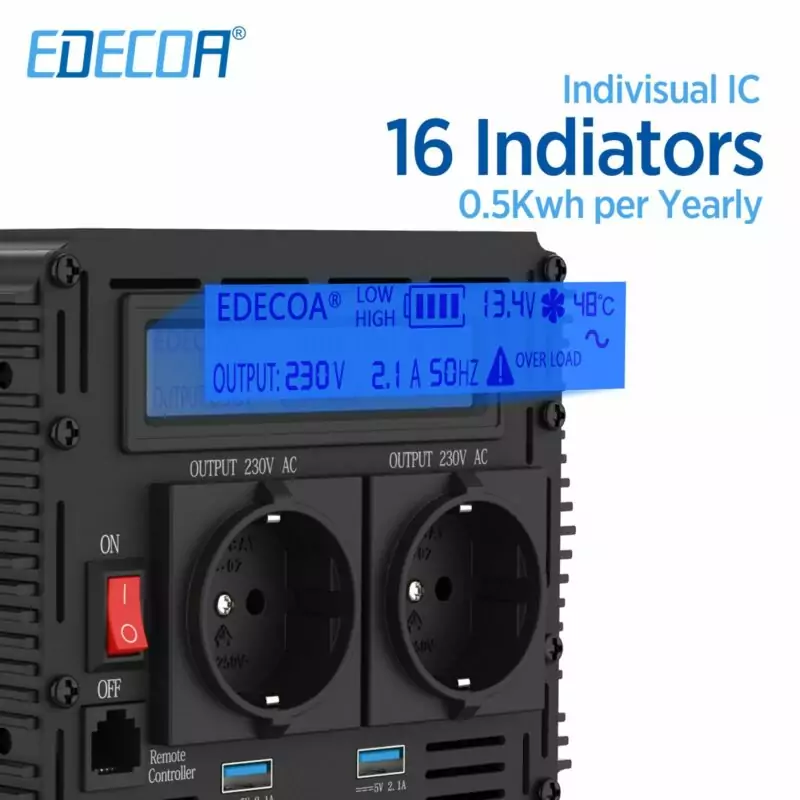

  • Real-time monitoring and beginner-friendly. New variation 2.0 multi-function LCD screen. LCD Display will reveal input & output voltage, battery capacity, alarm code, and working status.
  • 86 x 86 cms fixable board with standard RJ45 port and 4 meters cable, you can replace the longer cable television to increase push-button control range. For on/ off and keeping track of battery voltage.

Multi-Protection & Intelligent Alarm
Under voltage, over-voltage, overload, over present, brief circuit, over-temperature, and galvanized isolation. SPWM chips and low resistance MOSFET minimize the interruption of the solar inverter. Work continuously with 90% load pressure.

Smart buzzer develops to offer 5 alarm models for different scenarios.
More easily learn what is going on for your system.

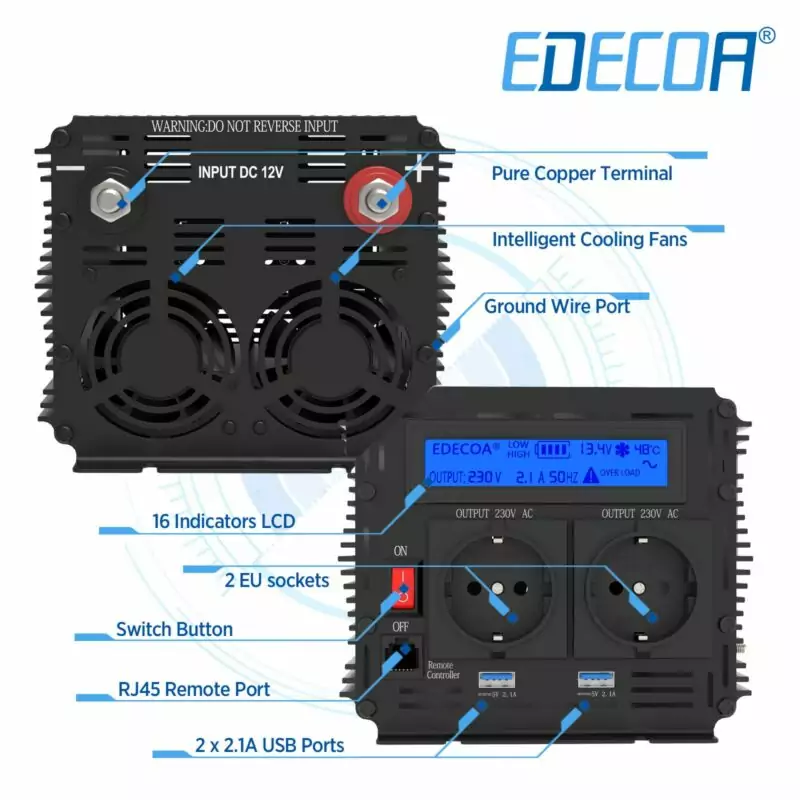

Details of a EDECOA Power Converter

Remote Controller

-86 x 86 cms fixable board with standard RJ45 port and 4 meters cable, you can replace the longer cable to increase remote control distance. For on /off and monitoring battery voltage.



LCD Display

LCD Display will show input & output voltage, battery capacity, alarm code, and working status.

Product Images
Model

12v-1000w(Black)

12v-1000w(Green)

12v-1000w(Green)

Socket Type

Germany Sockets

UK Sockets

US Sockets

Waveform

Pure Sine Wave Inverter

Continuous Power

1000w

1000w

1000w

Surge Power(1 Second)

2000w

2000w

2000w

Dimension (H x W x D)

28.5*15* 13 cm

Product Weight

2.7 kg

DC Input Voltage

12v

12v

12v

AC Output Voltage

220v~240v

220v~240v

100v~120v

Frequency

50hz

50hz

60hz

DC Input Voltage Range

10.5v-15v

10.5v-15v

10.5v-15v

Input Low Voltage Alarm

10.5v±0.3v

10.5v±0.3v

10.5v±0.3v

Input Low Voltage Shutdown

10v±0.3v

10v±0.3v

10v±0.3v

Input Over Voltage Shutdown

15v±0.3V

15v±0.3V

15v±0.3V

No Load Current

USB Charging

Yes

Yes

Yes

Battery
Cables

10mm²*750MM

Network
Cables

4 Meters RJ45 Standard

Additional information

Weight3.690 kg
Dimensions40 × 21 × 15 cm
Brand Name

EDECOA

Type

DC/AC Inverters

Origin

Mainland China

Size

28.5x15x13 CM

Output Frequency

50 Hz

Output Type

DUAL

is_customized

Yes

Output Power

1000W

Weight

3.3 kg

Model Number

1922101000L-V3

Certification

CE, RoHS

AC Output Waveform

Pure Sine Wave

Continuous Power

1000W

Surge Power

2000W

Surge Power Duration

0.1S

DC Input Voltage

12V

USB Output

DC 5V 2.1A

Efficiency

>90%

DC Input Voltage Range

10.5V~15V

Input Low Voltage Alarm

10.5V±0.3V

Input Low voltage Shutdown Voltage

10V±0.3V

Input High voltage Shutdown Voltage

15.5V±0.3V

No Load Current

<0.4 A

Battery Cable (1 pair)

10m㎡x750mm

Fan Starting Temperature

≥ 45 ℃

Temperature Protection

75 ℃

Certificate

CE, ROHS

Soft Start Function

Yes

Casing Material

Anodized Aluminum
