Product Features and Description
| Model | sp12/110-2000L | sp24/110-2000L | sp48/110-2000L | sp12/220-2000L | sp24/220-2000L | sp48/220-2000L |
| Continuous Power | 2000W | |||||
| Surge Power | 4000W | |||||
| Frequency | 50HZ±0.5HZ or 60HZ±0.5HZ | |||||
| Wave Form | Pure Sine Wave | |||||
| AC Regulation | THD | |||||
| Output Efficiency | 92% | |||||
| DC Voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| AC Voltage | 120VAC ±5% | 230VAC ±5% | ||||
| No Load Current Draw | 0.9A | 0.45A | 0.25A | 0.9A | 0.45A | 0.25A |
| DC Voltage Range | 10-15V | 20-30V | 40-60V | 10-15V | 20-30V | 40-60V |
| Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V | 10±0.5V | 20±0.5V | 40±1V |
| Over Voltage Shut Down | 15±0.5V | 30±0.5V | 60±1V | 15±0.5V | 30±0.5V | 60±1V |
| Low Voltage Recovery | 12.5V | 25V | 50V | 12.5V | 25V | 50V |
| Protection | Low Voltage/Over Voltage | LED Alarm and Automatic Recovery. | ||||
| Overload | LED Alarm and Automatic Recovery. | |||||
| Over Temperature | LED Alarm and Automatic Recovery. | |||||
| Short Circuit | LED Alarm and Automatic Recovery. | |||||
| Working Temperature | -10°- +50° | |||||
| Storage Temperature | -30°- +70° | |||||
| Production Size | 360*165*85(mm) | |||||
| Package Size | 420*235*150(mm) | |||||
| N.W/G.W | 3.6/ 4.2(kg) | |||||
| Start | soft-start | |||||
| Cooling Way | Intelligent Cooling Fan | |||||
S***o –
Great inverter, I am surprised by the quality and recommend the purchase.
Socket Type: Universal Input Voltage: 12V Output Voltage: 220-230V Ships From: Brazil
H***Z –
Inverter built with excellent quality materials.
Socket Type: Universal Input Voltage: 12V Output Voltage: 110-120V Ships From: China
AliExpress Shopper –
Everything is fine, but the pumping station could not be promoted, 1100 kW.
Socket Type: europe Input Voltage: 12V Output Voltage: 220-230V Ships From: Russian Federation
D***k –
Great inverter. It weighs 2-3 times more than ordinary inverters.
It has been come to Ukraine in 54 days.
Socket Type: europe Input Voltage: 12V Output Voltage: 220-230V Ships From: China
S***h –

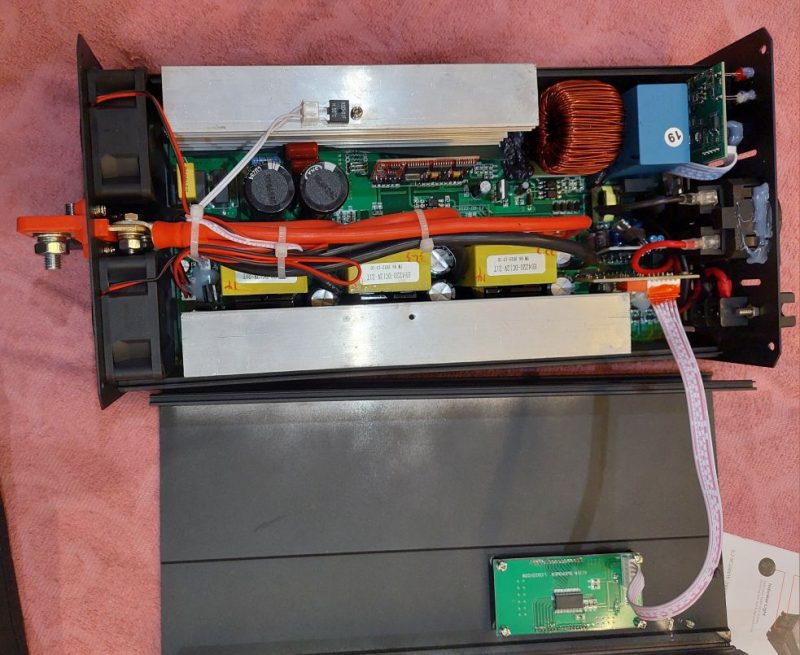

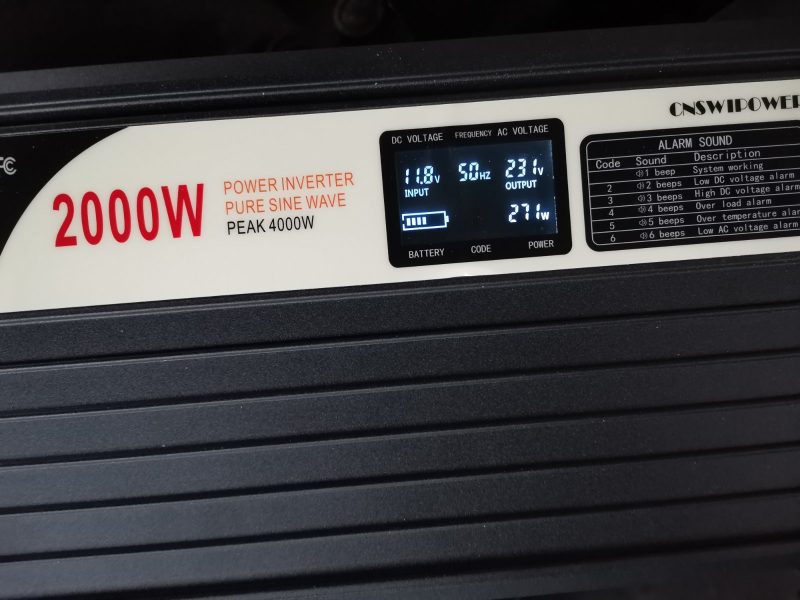

The inverter is good in terms of characteristics and functionality. Weighs in the region of 3 kg. Inside two massive radiators. Nothing dangles inside, although some details are soldering wryly. Hot-melt glue is not carefully used, especially for fixing the inductor board, as the cow was bombed. After the order, wrote to the seller and asked to send a new model (not with two indicators on the sidebar, but with one on the top), which he did! This indicator displays the battery charge indicator, battery voltage, output voltage, AC frequency output, power consumption, the code of the situation requiring attention.
Inside the transformer is the production date 01.12.22.
Delivery is not very prompt-41 days to the winery. Order was tracked.
I checked the performance, connected a table lamp 22 V, a mixer-50 V at idle speed, a drill-about 200 V at idle speed (while I read 62 ach to 12 V, need more capacity to increase the power of the connected devices. Recommend!
Socket Type: europe Input Voltage: 12V Output Voltage: 220-230V Ships From: China
V***o –
The necessary inverter, the prizvyshov for the Ministry, good packaging. To the next seller.
Socket Type: europe Input Voltage: 12V Output Voltage: 220-230V Ships From: China
s***v –
The product is very good, I took the 2000. Bulgarian boiler Bosch pulls well without mistakes. I ordered by courier for a week delivered 50 km.
Socket Type: europe Input Voltage: 12V Output Voltage: 220-230V Ships From: Russian Federation
S***v –
Good seller! The parcel arrived quickly! Maybe I’ll buy another one more powerful.
Did not communicate with the seller.
Socket Type: europe Input Voltage: 12V Output Voltage: 220-230V Ships From: Russian Federation
V***V –
I received the goods earlier, so I am writing a review today, as 100a battery was bought and brought only today. The inverter checked the toaster 700 W, then several bulbs, when 700 w the fans did not work. At the expense of the inverter, I immediately became interested in the fact that one screw was not on the DEK, so I disassembled and shabby, it was already disassembled and the flux board was cleaned, since white traces on the board remained. According to all the reviews who disassembled the inverter, everyone has a dirty board and in rosin. As long as he can work, this is already a lottery. I took it for the house, because it got a frequent shutdown of only 9 storey buildings every month 2-3 times in all 23 years. I bought other wires for the battery, much stronger, as well as a special fuse for the battery.
Socket Type: europe Input Voltage: 12V Output Voltage: 220-230V Ships From: Russian Federation
AliExpress Shopper –
Everything is super. The seller is very good, I recommend!
Socket Type: Europe Style Input Voltage: 12V Output Voltage: 220-230V Ships From: China
e***a –
Arrived relatively fast to island wood, about 15 days the delay was the logistics company, is the second inverter buy this seller recommend, now only testing
Socket Type: europe Input Voltage: 48V Output Voltage: 220-230V Ships From: Poland
R***r –
Delivery fast, works, still works, from the decision…
Socket Type: europe Input Voltage: 12V Output Voltage: 220-230V Ships From: Russian Federation
AliExpress Shopper –
Product is very safely packed. Inverter is really good quality. Still didn’t check with a big load. But, for a 200w load, the fans are not even working. Because there is no heat at all for a small load like 200w. I’m really satisfied!
Socket Type: Universal Input Voltage: 24V Output Voltage: 220-230V Ships From: China
G***n –
Everything works according to the description
Socket Type: europe Input Voltage: 12V Output Voltage: 220-230V Ships From: Russian Federation
Y***s –
Happy because it’s the same feature that was asked for
Socket Type: USA Input Voltage: 24V Output Voltage: 220-230V Ships From: China
