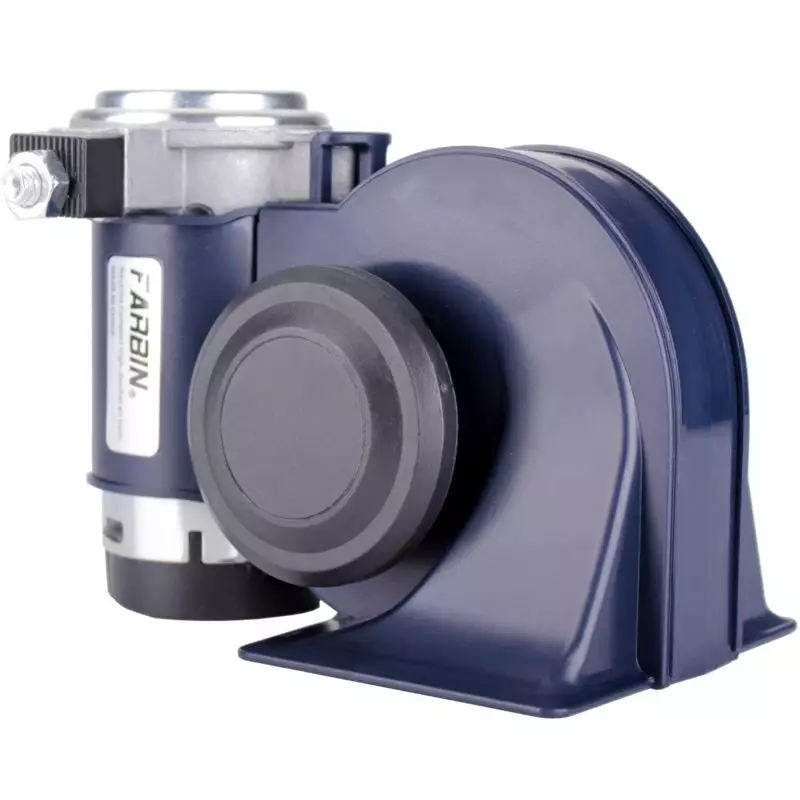

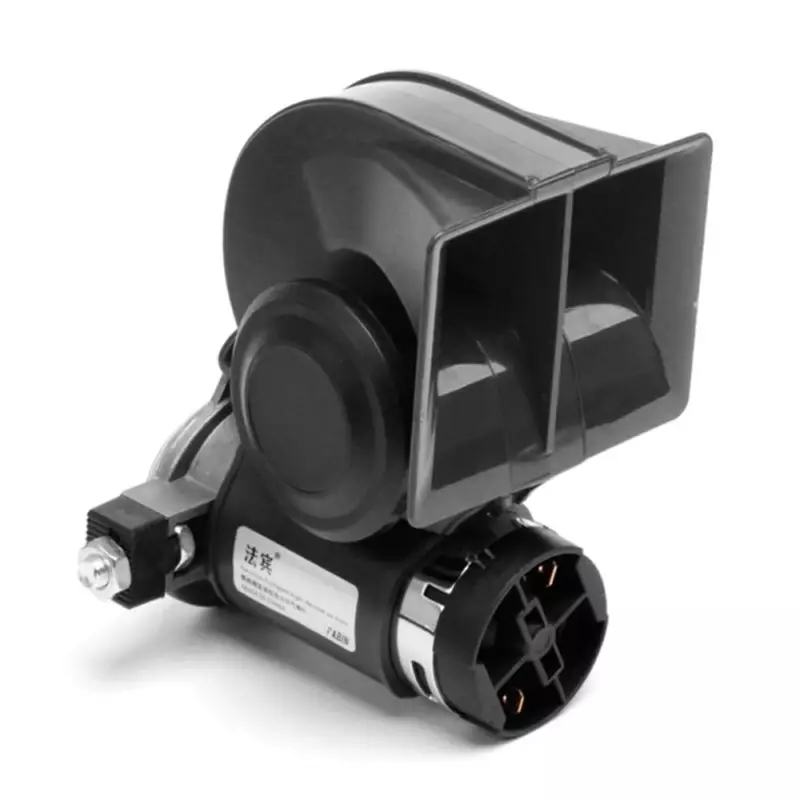

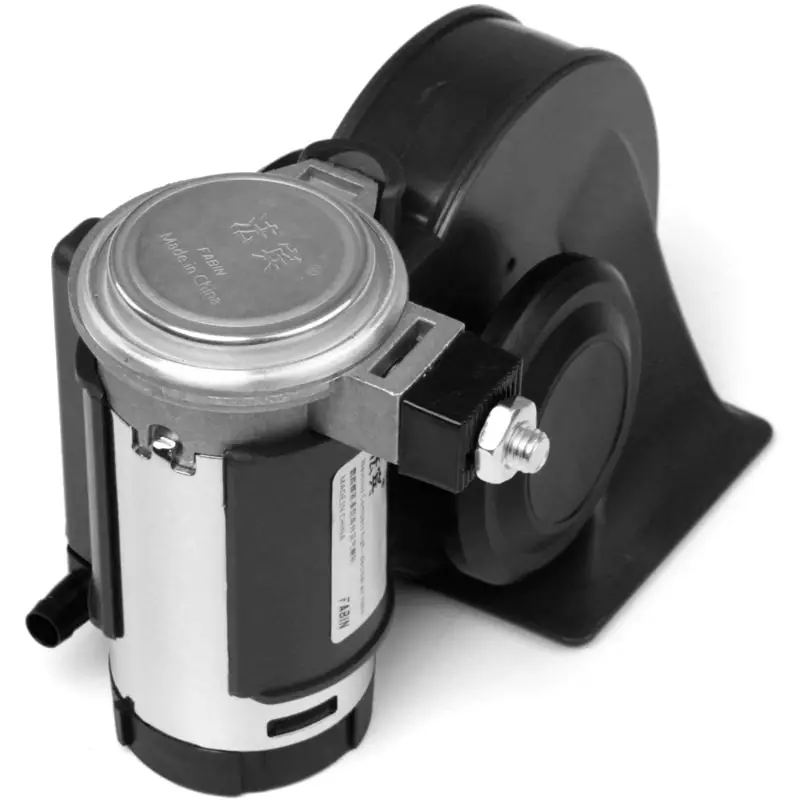

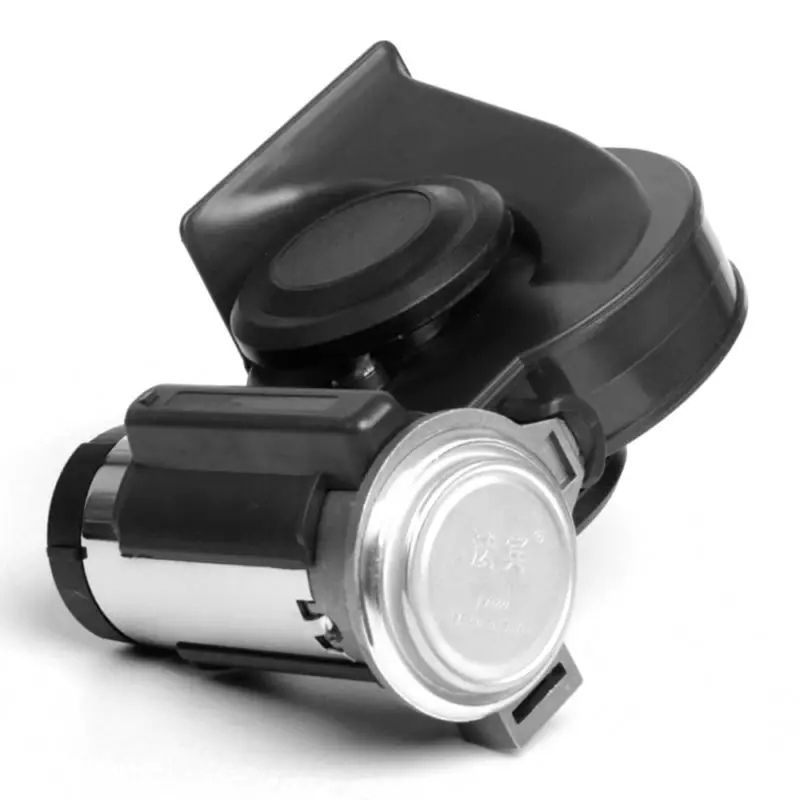

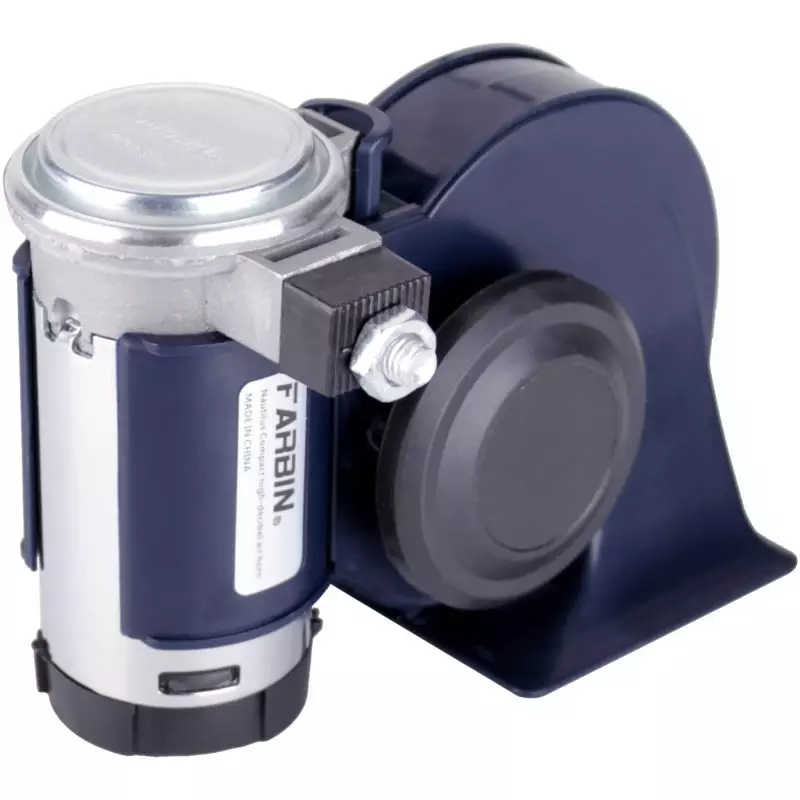

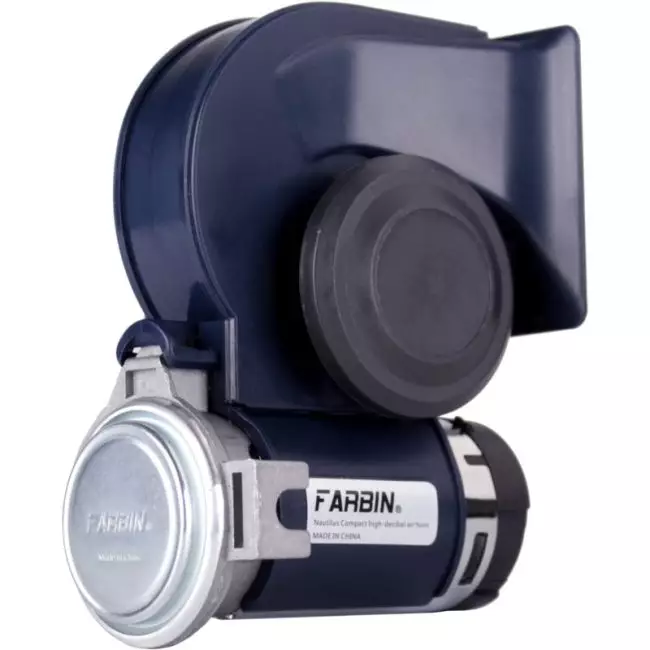

FARBIN Snail Air Horn With Compressor Relay Harness 12V 150db

Product Features and Description

• Brand：FARBIN
• Color：Black/Red/Blue
• Material Plastic

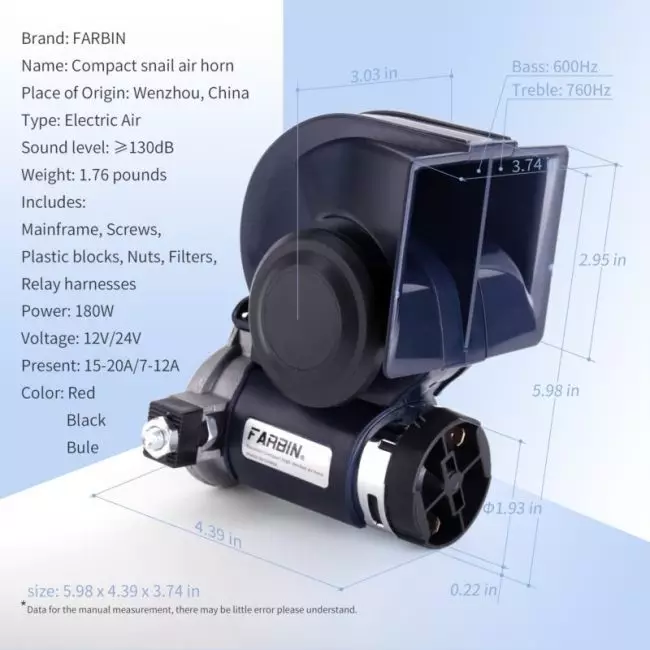

• Item Dimensions ：LxWxH 6.22 x 4.64 x 3.93 inches
• Voltage：12 Volts

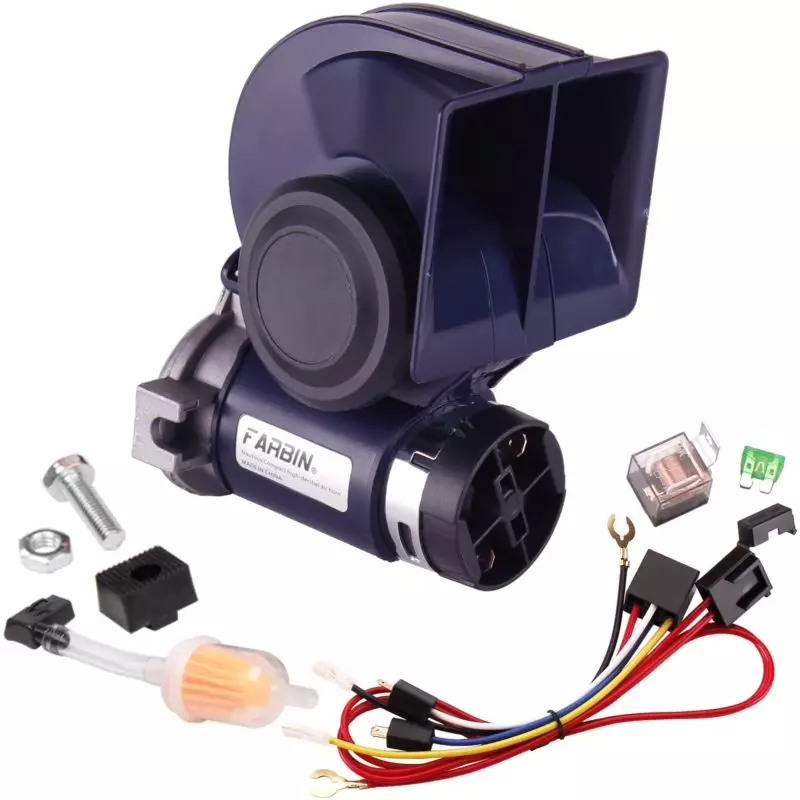

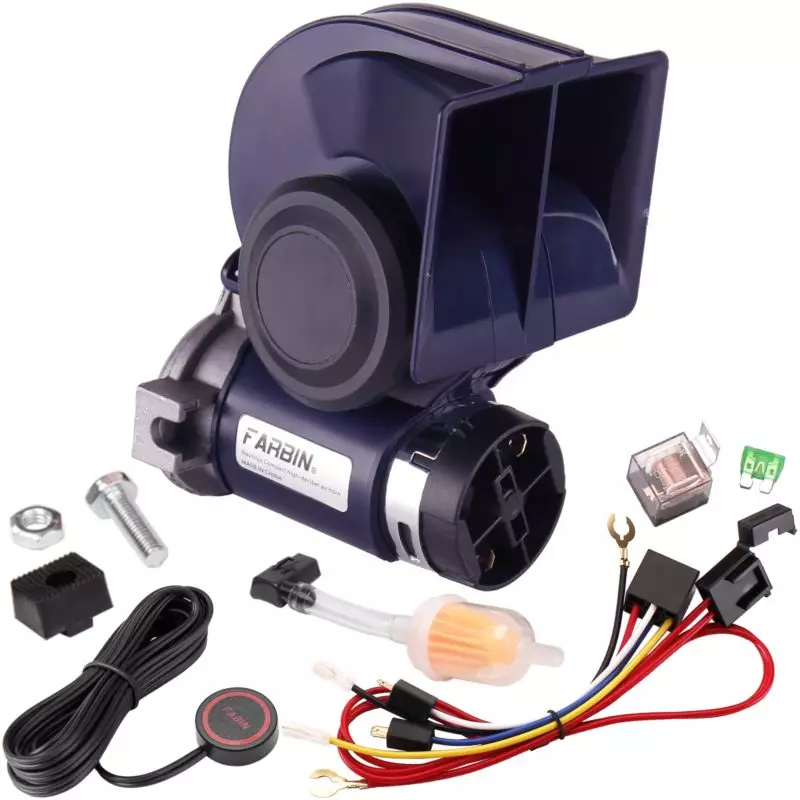

• Including: high decibel snail air horn, relay, harness,fuse, filter ,fixing screw and Button.
• High Volume:It can produce 150dB of strong sound. When you drive, no one will ignore the sound.

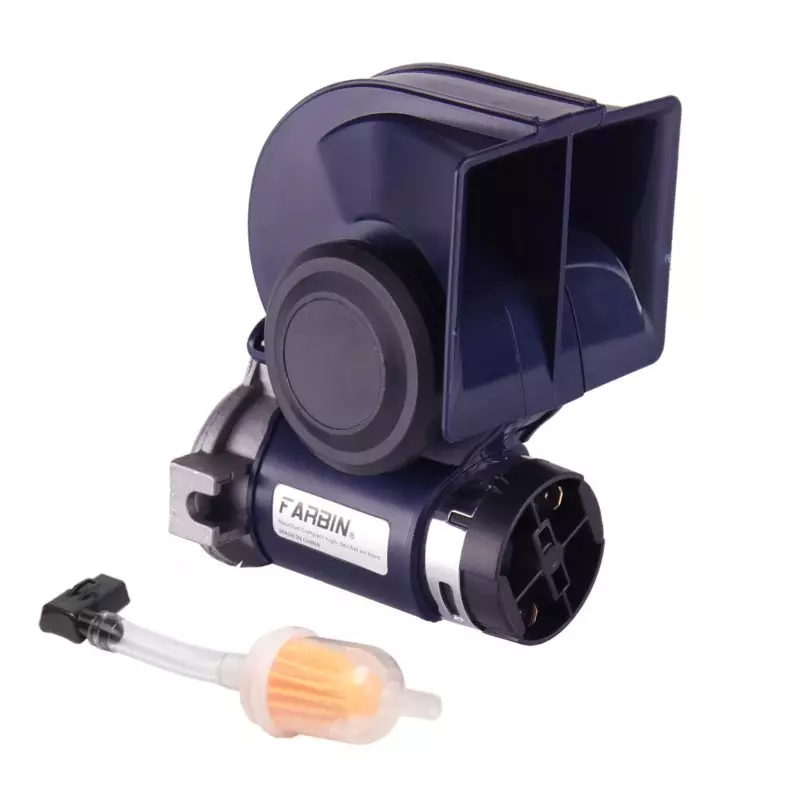

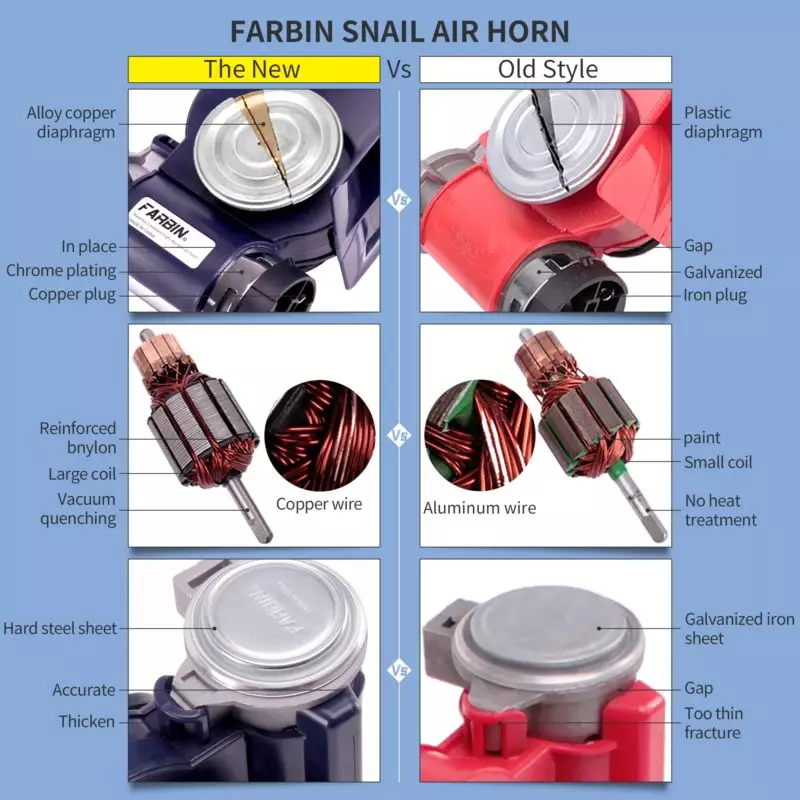

• High quality: The air horn is made of high quality material, which ensures durability and can work in various temperature environments.The matched filter filters the air and prolong the service life.
• Easy to install: Our speaker suite is very easy to install, You can install it manually with the harness package we distribute.

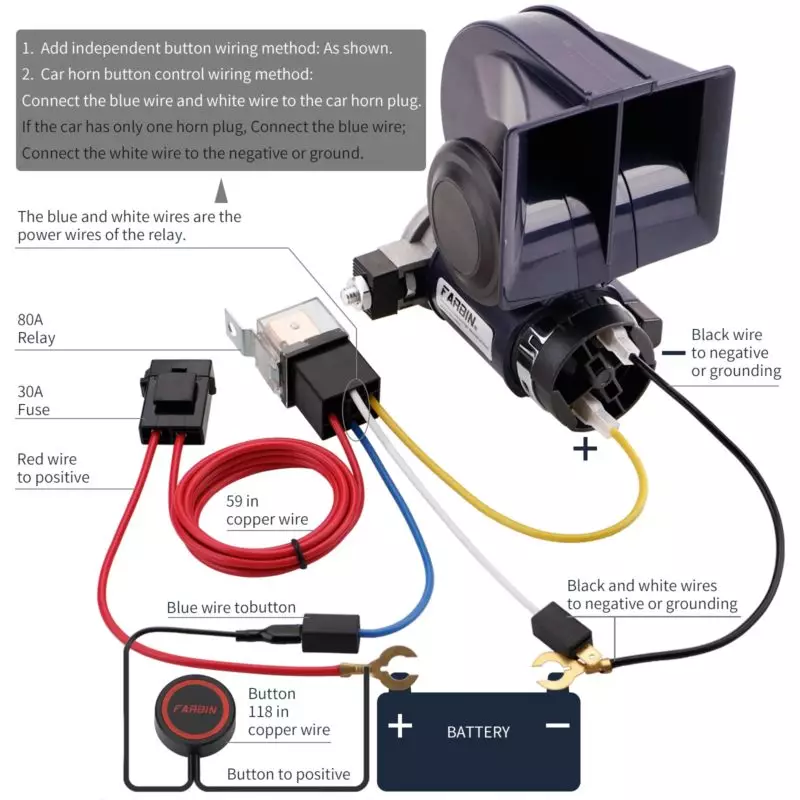

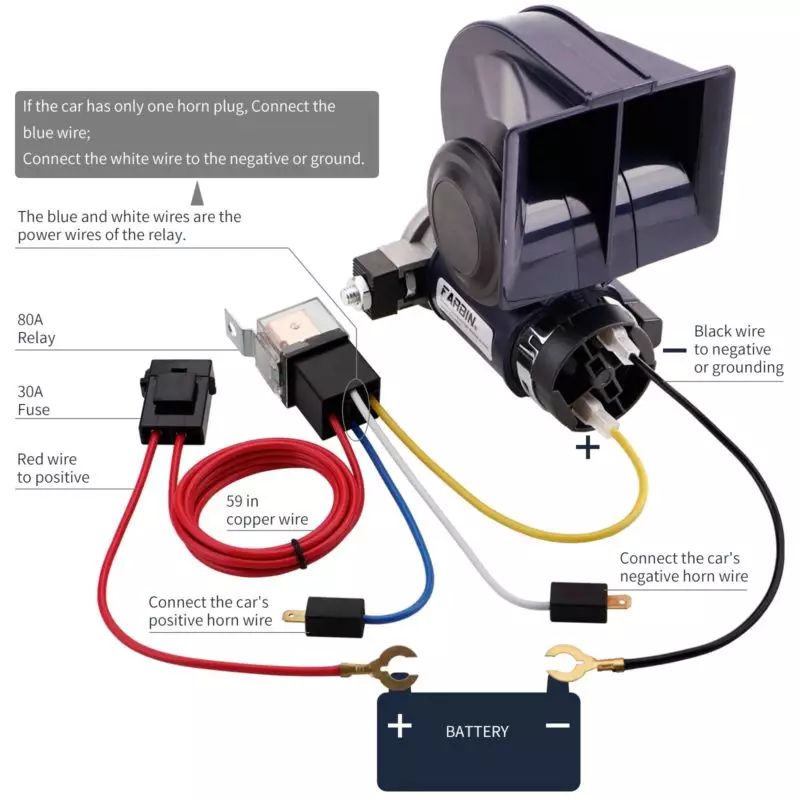

A number of typical wiring mistakes:

1. After linking the line, press the horn button, the horn will not sound, and the relay will not clatter, which means that the blue line and the white line are mistakenly linked. They One line of the button links to the blue line (or white line) of our electrical wiring harness, the other line of the button links to the battery favorable line, and the white line( or blue line) in the electrical wiring harness links to the frame.
2. The air pump makes a whine noise but the horn does not sound, which means that the favorable and unfavorable terminals under the air pump are linked reversely. The yellow wire ought to be inserted into the positive pole and the black wire into the unfavorable pole.

That’s since there is paint on the frame where the black wire is grounded, which impacts the typical power on of the unfavorable pole. As long as it is connected to a good power on position, it is Okay.
