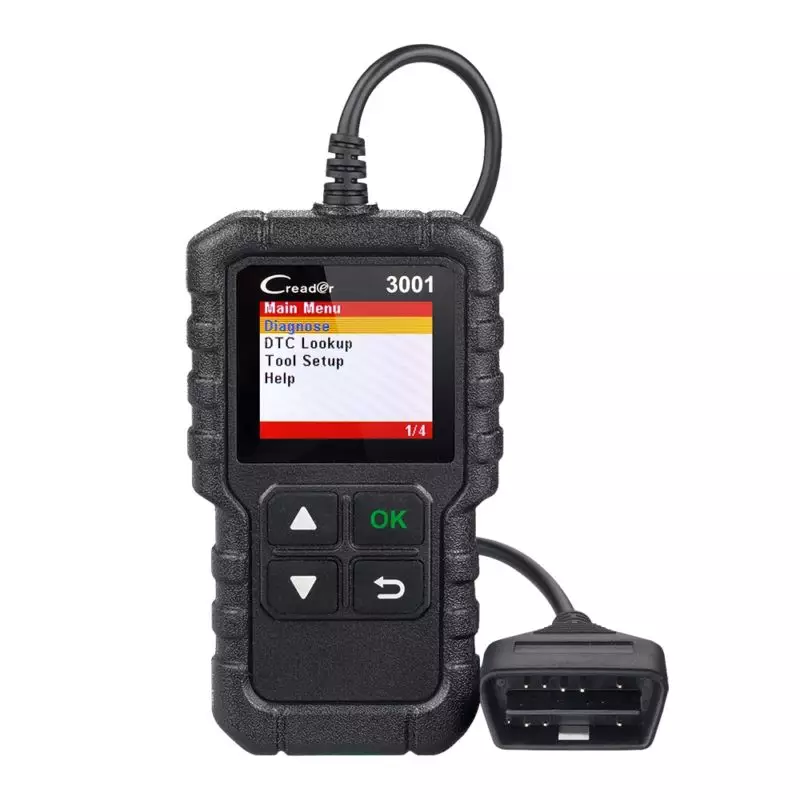

LAUNCH X431 OBDII/EOBD Code Reader Scanner

Product Features and Description

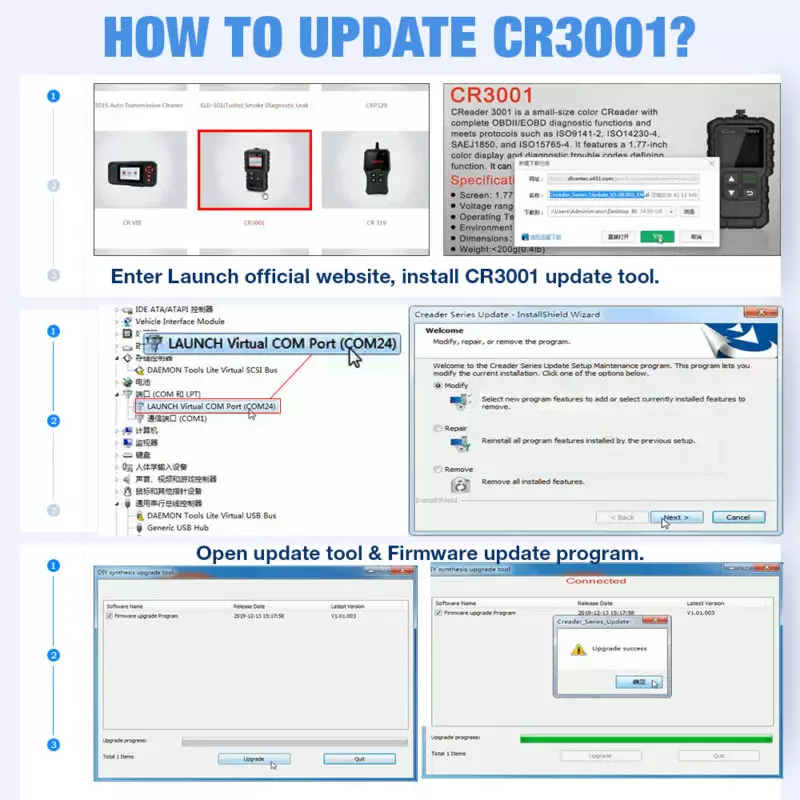

Hot Sale LAUNCH X431 CR3001 OBD2 OBDII Scanner -check and delete engine fault code ,turn off engine warming light Free online upgrade CR3001 Parts might cause your check engine light on include:

1. Gas Cap
2. Oxygen Sensor
3. Air Fuel Ratio Sensor
4. Mass Air Flow Sensor
5. Ignition Coils
6. Spark Plug Wires
7. Spark Plugs
8. Thermostat
9. EGR Valve
10. Evaporatative Emission Canister Purge Valve(EVAP)
11.  Catalytic Converter.

If the engine light is not turned off in time it will Cause Serious environmental pollution , Increased fuel consumption,Increased engine noise.Increased in temperature , ect

Why choose LAUNCH X431 CR3001 Scanner for your car?

LAUNCH 3001 is obd2 scanner for engine system with full test of obd2， including : Read Codes , Erase Codes, I/M Readiness, Data Stream View, Freeze Frame, O2 Sensor Test, On-Board Monitor Test, EVAP System Test, Vehicle Info, DTC Lookup .

LAUNCH CR3001 is a high-quality automotive scanner, supports all OBD-II protocols

1. SAE J1850 PWM (41.6K baud)
2. SAE J1850 VPW (10.4K baud)
3. ISO 9141-2 (5 baud init,10.4K baud)
4. ISO 14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO 14230-4 KWP (fast init,10.4 Kbaud)
6. ISO 15765-4 CAN (11bit ID,500 Kbaud)
7. ISO 15765-4 CAN (29bit ID,500 Kbaud)
8. ISO 15765-4 CAN (11bit ID,250 Kbaud)
9. ISO 15765-4 CAN (29bit ID,250 Kbaud)

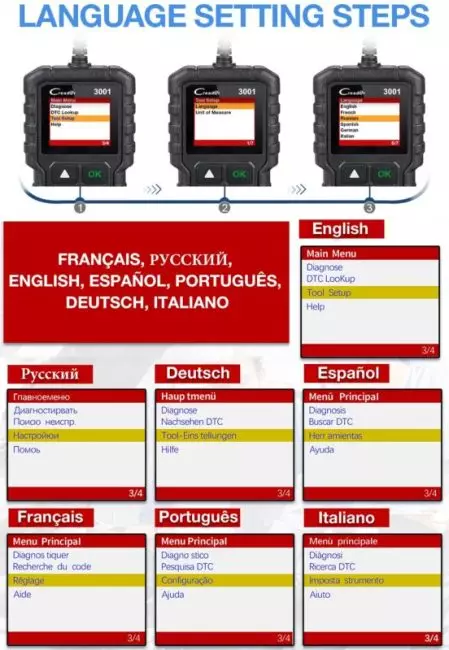

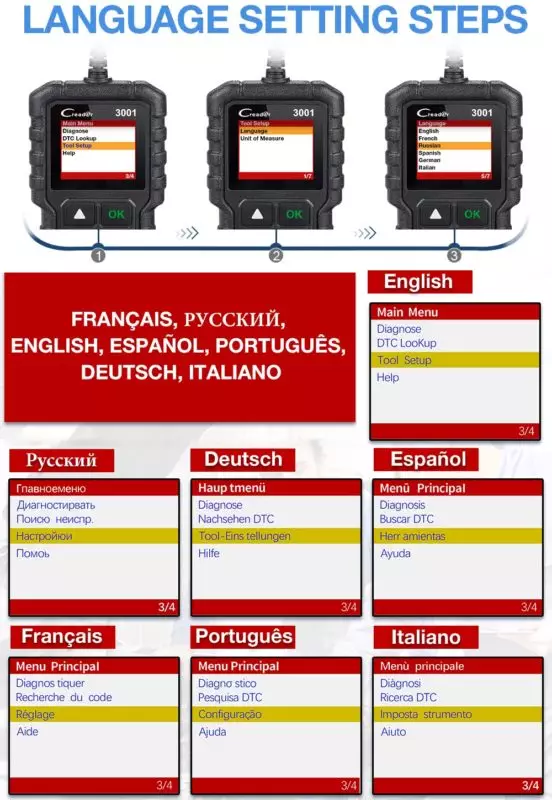

Multi-Language supported The CR3001 operating system can quickly be changed into English, French, Russian, Spanish, German, Italian and Portuguese. Wide vehicle coverage

• American Car list: Need standard obd2 , and release year from 2000-now
• European car list: Need standard obd2 , and release year from 2003-now
• Russian car list: Need standard obd2 , andrelease year from 2012 -now
• Japanese / Korean car list: Need standard obd2 , and release year from 2006-now
• Chinese car list: Need standard obd2 , and release year from 2009 -now

The full function of CR3001 (Support Full OBD2 functions, Engine Check including ) :

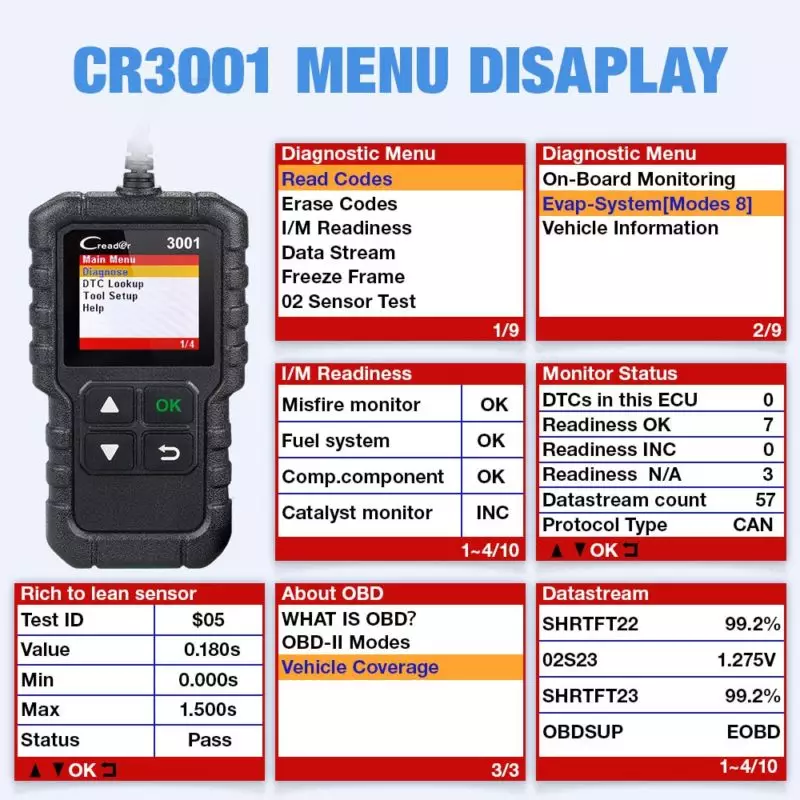

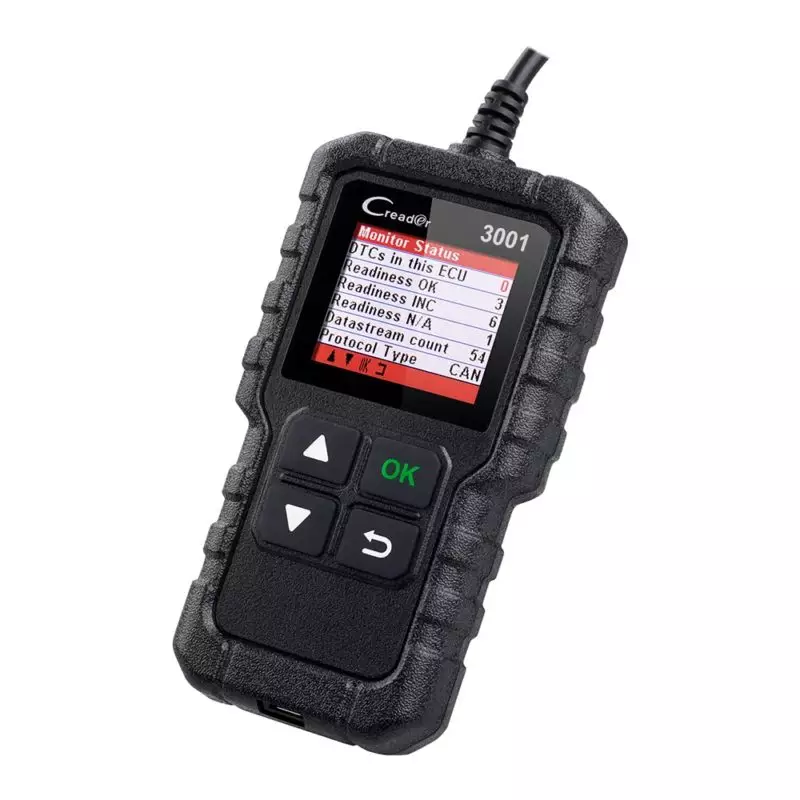

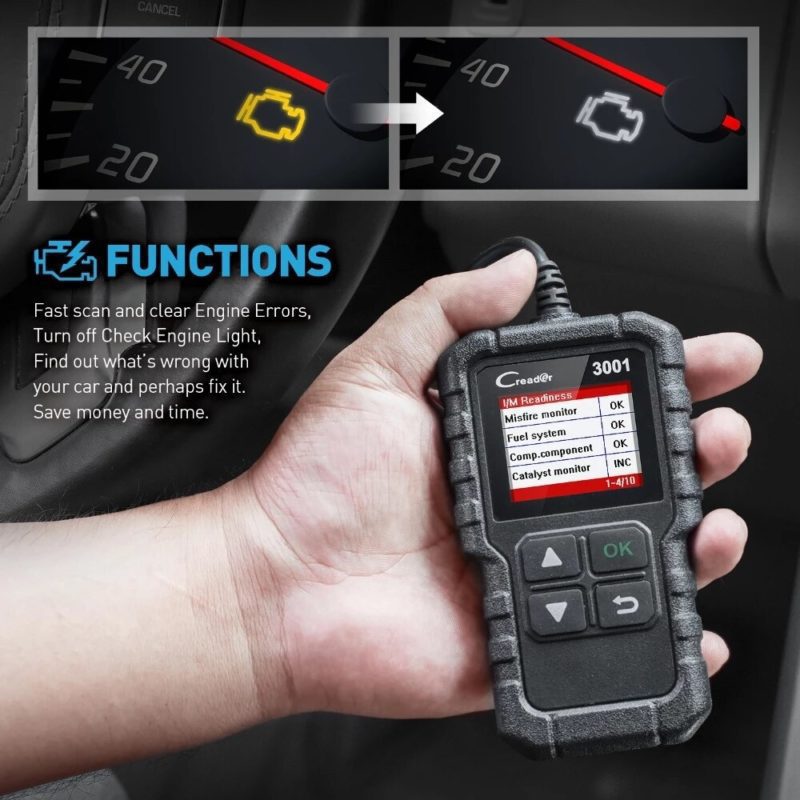

• Read and erase fault codes Read DTCs (Diagnostic Trouble Codes) to locate the issues,Clear DTCs to turn off the Check Engine Light after certain repairs • Live Data Viewing Live data are displayed in a time-based chart to help customers to better analyze the abnormal parameter.This function will let you see engine performance information, if there are any trouble codes or issues with your engine or ECU. • Freeze Frame Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. It intended to provide you with a guide as to where a fault might be occurring within a vehicle. • I/M Readiness Status Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing. • O2 Sensor Test Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer. • On-Board Monitor Test etrieves and displays test results for emission-related powertrain components and systems. Which is a way to find out if the engine has any misfire or compression problems on a particular cylinder, or other data that might indicate a problem but isn’t severe enough to trigger a check engine light. • Component Test Certain vehicle components can be actuated by commands sent from the scanner to test their operability How to diagnostic car with CR3001? Keep CR3001 as the latest version, free updates for life Packing List

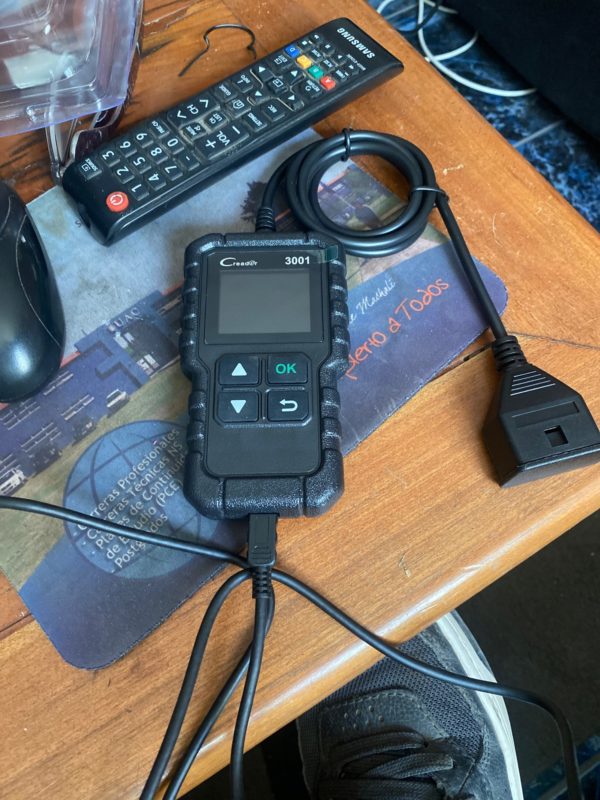

• 1pcs*LAUNCH CR3001
• 1pcs*USB Cable
• 1pcs*English manual

More Pictures：
